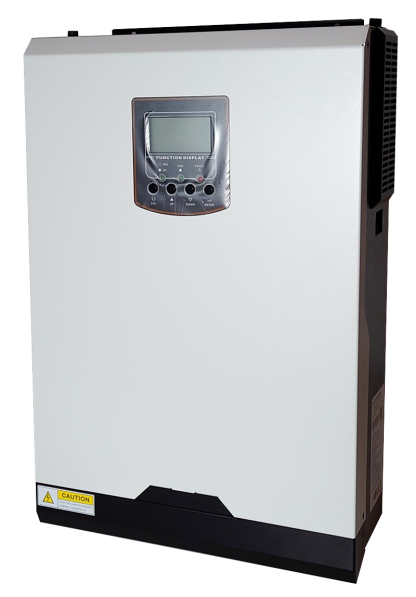

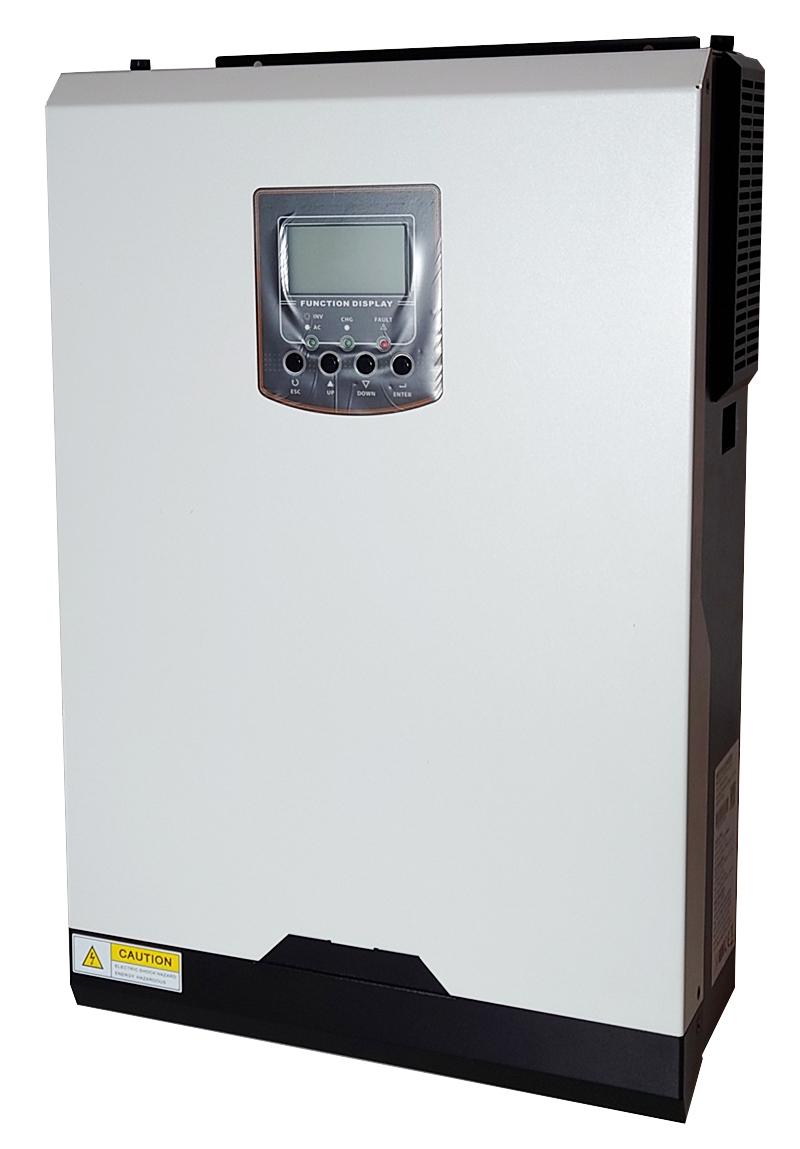

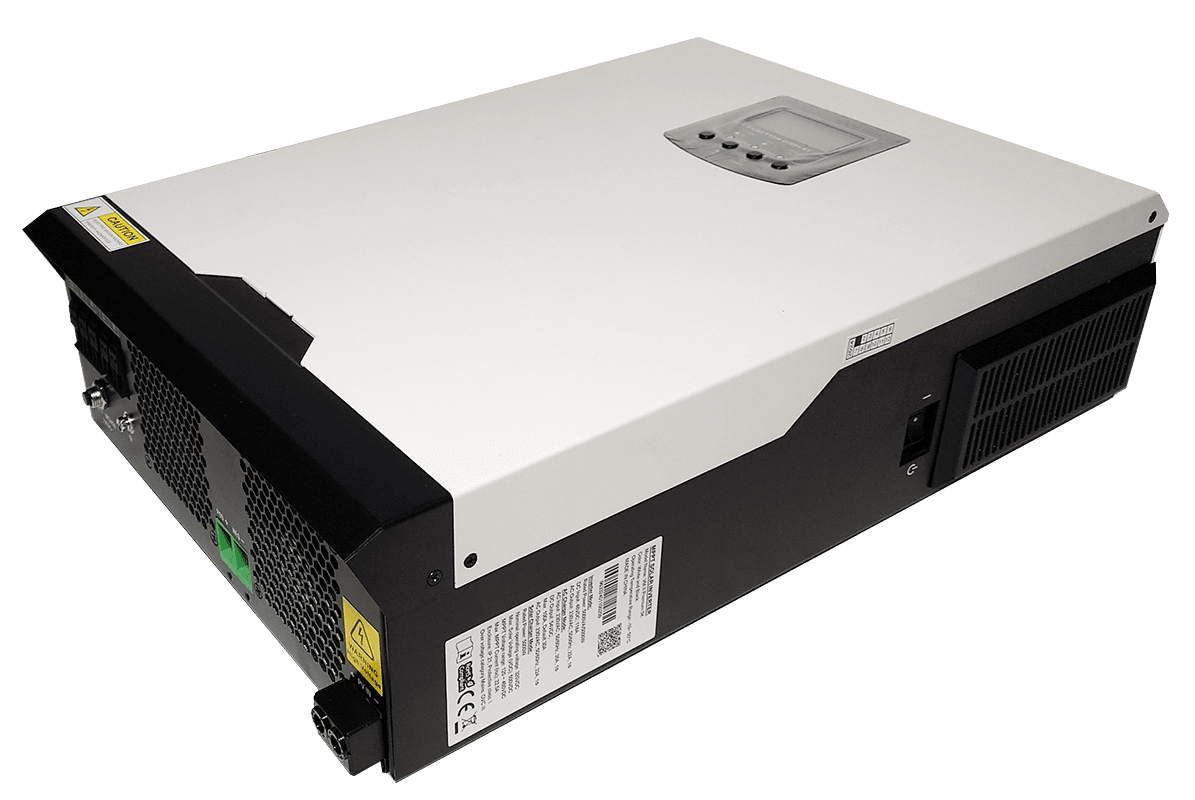

Axpert VM II Premium 5000W 48V Hybrid Pure Sine Wave Inverter 5000W 500V MPPT 100A Mains Charger

In stock

In stock

£499.00VAT Included

FREE SHIPPING
The VM II Premium 5000W 48V hybrid off grid inverter intelligently combines the functions of a 5000W pure sine wave inverter, 5000W MPPT solar charge controller and a 100A smart battery charger in one single unit. This model can accept input from solar panelsmains power/ generator and a battery – either from a single or combination of input sources. In addition to its hybrid capability, this innovative inverter features advanced communication functions along with a menu full of highly customisable settings.

This is the perfect solution for any off-grid application with limited or zero access to traditional mains power. This hybrid inverter features an Uninterrupted Power Supply (UPS), making it the ideal option for applications where the power supply is unreliable, intermittent or expensive to maintain. This inverter is great for both stationary and mobile off-grid installations (e.g. remote properties, holiday homes, huts, and cabins or narrowboats, yachts etc), as well as for customers looking to reduce their mains electricity usage and save on electricity bills. It could also create the perfect back-up system in locations suffering from frequent power cuts.

  •  5000W 48V Pure sine wave inverter: Converts DC current into 230V AC mains electricity, to run various household appliances such as a TV, laptop, fridge, microwave, lighting etc. Able to generate 5000W of continuous power with a strong peak power handling capability of up to 10,000VA (to start appliances with electric motors such as pumps, a vacuum cleaner, power tools etc). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances. The inverter is able to take power from solar panels directly for its operation, even if the battery is not available.
  •  Inbuilt 5000W MPPT Solar charge controller with high input voltage of up to 500V DC: The high efficiency MPPT controller regulates the input from the solar panels to the batteries or to load, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. The controller operates at up to 98% efficiency to extract the maximum possible power from the solar array.
  • Enhanced 100A Smart battery charger: Designed to enable safe, efficient and fast (up to 100A) unattended charging of a battery from a mains power source or generator, with full overcharge protection and multiple charging stages.
  • The VM II 5000W 48V hybrid inverter boasts an abundance of unique features, providing enhanced functionality over standard inverters. These include:-
  • Simplified installation: The exceptionally high solar input voltage of this inverter of up to 500V DC allows the solar panels to be connected in series in one single chain. This eliminates the need for complicated multiple string connections, blocking diodes and expensive thick cables.
  • Output source priority: This intelligent feature allows the user to set output source preferences (solar/ battery power/ mains input or a generator) for the AC load output of the inverter. This menu includes several options for varying conditions and scenarios, e.g. which source of energy is given priority for the AC output if solar power is insufficient/ if battery voltage is too low/ if mains is unavailable, etc.
  • Battery charging priority: A wide selection of battery charging priority options are available. For instance, the user can choose to charge the battery using solar power only/ using a combination of solar power and mains power/ from mains power only etc.
  • A range of highly customisable settings: The parameters for this inverter can be personalised to an exceptionally specific degree via the user-friendly interface. At the touch of a button, the user can customise parameters such as the AC input range, battery type, max charging current, specific high/low voltage disconnect points (and preferred charging source upon reconnection), the duration and voltage of each charging stage, auto-restart options, power saving mode, overload bypass, battery equalization stage characteristics and so on. There are also options for managing operational features such as the audible alarm and backlight settings.
  • Advanced communication options: In addition to the integrated Bluetooth feature, this inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, such as:  solar/ battery/ AC voltage, charging current, battery capacity etc. Detailed data logs are also available to view and export to PDF/ Excel formats.
  • Auto restart function: When overload or overheating occurs, the inverter will disconnect the load appliances, and automatically reconnect once safe conditions are detected.
  • BMS connectivity: The inverter features a Battery Management System (BMS) port, offering the possibility to connect to an optional BMS.
  • Intelligent cooling design: The inverter uses predictive fan logic based on performance and temperature (1 or 2 fans operating at a time, with variable speeds) to prevent over-heating of the components. The fan is also designed to be easily removed in order to simplify maintenance of the inverter.

Compatibility:

This inverter DOES NOT feed into the grid.

Communication compatability , Pylon WECO,Soltaro

This hybrid inverter is suitable for 48V flooded, sealed GEL/AGM lead-acid  and Lithium with pre-defined charging programs. A user-defined battery type with numerous customisable settings is also available for charging other battery types (Please check the user manual).

Spec Sheet

  • This inverter does not feed into the grid
  • Solar Assistant Compatible
  • Nominal battery voltage: 48V
  • Continuous power output: 5000W/5000VA (220-240V AC)
  • Surge power: 10000VA
  • Output frequency: 50Hz
  • Output waveform: Pure sine wave
  • Maximum solar input power: 5000W
  • Maximum open circuit solar input voltage: 500V (open circuit)
  • MPPT solar operating voltage: 120V – 450V
  • Maximum solar charging current: 80A
  • Maximum mains AC charging current: 60A
  • Maximum combined charging current: 80A
  • Peak efficiency: 93%
  • Solar / AC charger max efficiency: 98%
  • Operating temperature: -10°C to 50°C
  • Supplied with PC connection cable and PC software CD
  • Size: 100 x 300 x 440 mm
  • Weight: 10 kg
