Sale!

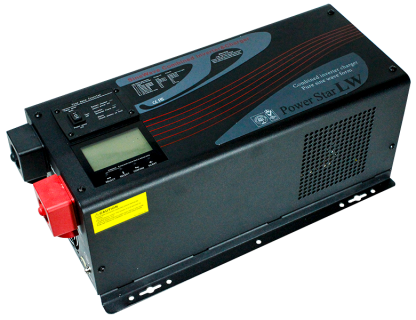

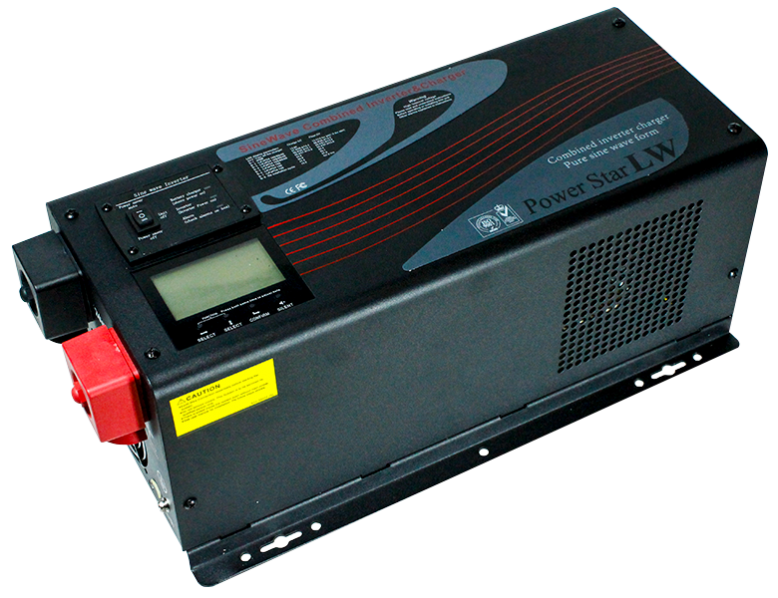

Power Star 24V 3000W Low Frequency Pure Sine Wave Inverter (Peak 9000W) 70A Charger Lithium Compatible

In stock

In stock

£589.00VAT Included

LITHIUM COMPATIBLE VERSION
This 24V off grid inverter has a 70Amp charger built in.

Please Note

The box and packaging is slightly damaged. Inverter has been tested for functionality and is in good working order.



Low-frequency inverters have a few advantages compared to higher frequency inverters; namely their peak power capacity and their reliability. Low-frequency inverters can operate at a peak power level of up to 300% of their nominal power level for several seconds, while high-frequency inverters can operate at 200% of nominal power for a fraction of a second. Low frequency inverters operate using transformers (as opposed to electronic components such as MOSFETs for high frequency inverters). This results in a stronger, sturdier inverter which is less prone to damage.

  • A fast built-in battery charger (with charging current options ranging from 14A to 70A) to charge your batteries from mains, with advanced 4-step progressive charging and several battery types to choose from. If required, the battery charger can be permanently switched off.
  • Option to select either DC or AC priority mode. In AC priority mode, if the inverter is connected to the mains, batteries will be constantly charged by mains power (until fully charged). Appliances will also be powered by mains by default. In DC priority mode, appliances will always be powered by the batteries, even if the mains input is connected. Once the battery charge drops below a certain threshold, mains input will automatically kick-in to charge batteries and power appliances.
  • Power saving mode which allows the inverter to work in “power on demand” standby mode by only generating power when load is connected (saves energy and battery power)
  • UPS (Uninterrupted Power Supply) system which provides constant power for your appliances when the inverter is working in AC (mains) mode and mains power supply shuts down (the inverter will automatically switch to the battery and your appliances will not switch off)
  • Bypass mode when the mains power is connected (in AC priority mode). In this mode, the AC mains input is automatically linked to AC output of the inverter, therefore bypassing the DC-to-AC energy converting circuits of the unit, increasing the efficiency and making the quality of the AC output the same as AC input.
  • Detailed LCD display which shows voltages, battery status, current operating mode and other information
  • Ability to accept input AC power from a generator (recommended nominal power of the generator is twice the rated power of the inverter)
  • Various settings allow the user to customise the inverter (output voltage, output frequency, input voltage thresholds, battery type and capacity)

User Manual

  • Off grid Inverter (This inverter does not feed in)
  • Available Remote Control Switch
  • Input: 24V DC
  • Output voltage: 208V / 220V / 230V / 240V (programmable in settings)
  • Output frequency: 50Hz / 60Hz / auto (programmable in settings)
  • Output wave: pure sine wave
  • Input voltage range: normal or wide (programmable in settings)

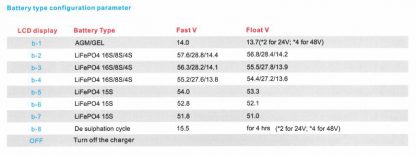

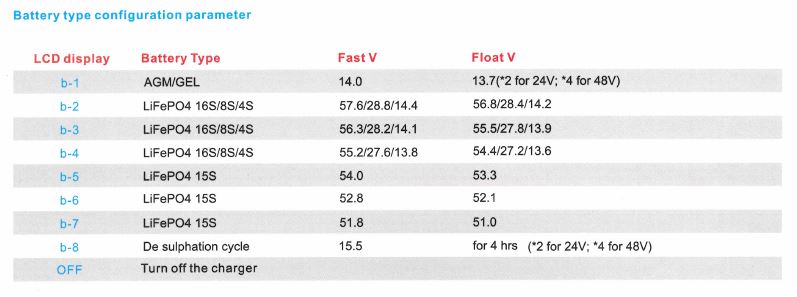

  • Battery bank type: lead acid/AGM/LiFePO4 (programmable in settings)
  • Battery charging current options: 14A / 28A / 42A / 56A / 70A (programmable in settings)
  • Power rating: 3000W nominal, 9000W peak
  • Nominal inverter efficiency: 88%
  • Power saving mode
  • UPS and bypass mode
  • AC / DC priority mode
  • Minimum battery voltage: 20V
  • Low battery alert: 21V
  • Protection against: overload, overheat, low battery, overcharge
  • Overcharge protection voltage: 31.4V
  • Power Factor: 0.9-1.0
  • Operating temperature range: 0 – 40C
  • Weight: 26 kg
  • Size: 44.2 x 21.8 x 17.9 cm
