300W 12V Wind Charge Controller Waterproof

Out of stock

Out of stock

£39.00VAT Included

Specification Sheet

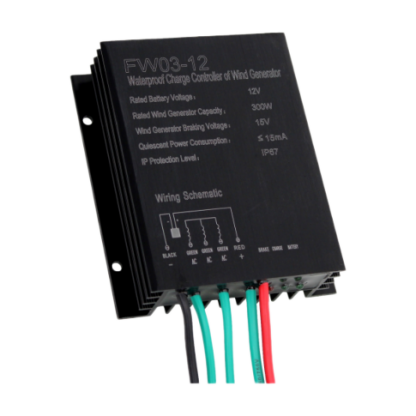

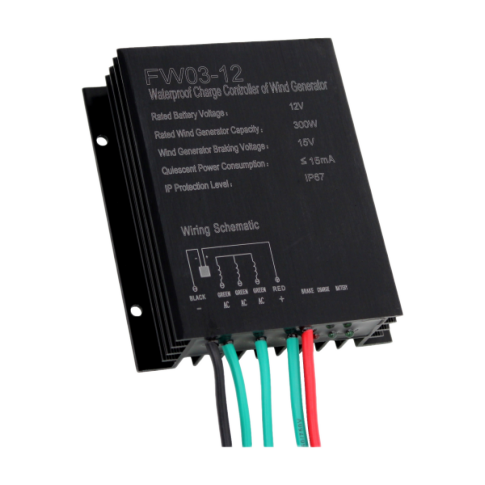

This waterproof 300W 12V wind charge controller is designed to charge lead acid batteries using energy generated from wind turbines. The controller seamlessly converts AC three-phase output from a wind generator into DC output. This is then ready for charging a 12V battery or a battery bank.

This wind charge controller has with advanced dual safety protection. Its aim is to protect both the battery and the wind turbine itself. So, this happens through the intelligent automatic braking function. When the battery is full, it stops and protects the battery from overcharging. Automatic braking also helps to prevent damage to the wind turbine when there are high wind speeds.

The fully waterproof casing (IP67 rating) ensures that this wind controller is suitable for outdoor mounting. The unit also features LED indicators to show the current mode. In addition there is the system connection status and rotation speed of the wind generator.

This wind controller is compatible with 12V wind turbines ranging from a minimum capacity of 100W to a maximum of 300W.

  • Battery voltage: 12V
  • Minimum wind generator capacity: 100W
  • Maximum wind generator capacity: 300W
  • Wind generator braking voltage: 15V
  • Wind generator recovery voltage: 13.5V
  • Display mode: LED
  • Ambient temperature: -35~+75℃
  • Dimensions: 100 x 87 x 28 mm
  • Weight: 300g
  • Quiescent current: ≤15 mA
  • IP protection level: IP67
